Convolutions From Scratch
In this section we implement a 2D convolution using NumPy only and then compare the results with
scipy.signal.convolve2d. I implemented a 4-loop and 2-loop implementation of the
convolution with "same" 0-padding. I also used "same" padding when using scipy.signal.convolve2d.
We use each approach to convolve a portrait with a 9x9 box filter, and finite difference filters in the
x (Dx) and y (Dy) directions.
The outputs looks pretty much identical, except it seems for the Dx and Dy outputs, the high and low
frequencies are switched between the NumPy implementations and the scipy implementation. Since
I used the same type of padding, the borders of the images look the same as well. In terms
of runtime analysis, the 4 loop approach is the slowest, then the 2 loop, then the scipy is most optimized.

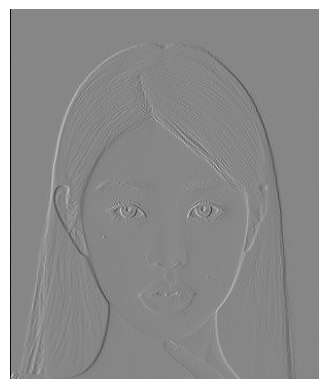

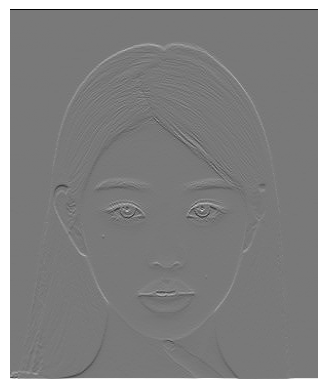

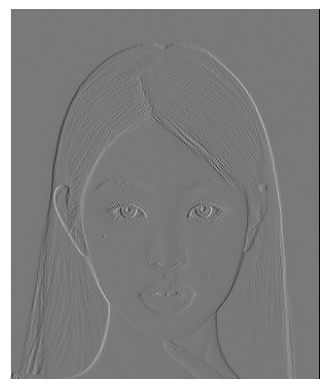

| Filter | 4 loops | 2 loops | SciPy |
|---|---|---|---|
| Box Filter |  |
 |
 |
| Dx |  |
 |
 |
| Dy |  |
 |
 |
Gradients and Edges
In this section we compare 3 methods of producing gradient and edge images.
The first method is using a finite difference filter to simply find the partial derivatives of the image,
combine them to find the gradient magnitude of image, then finally pick some threshold to binarize the gradient.
The second method is to convolve the image with a gaussian kernel to smooth the image before

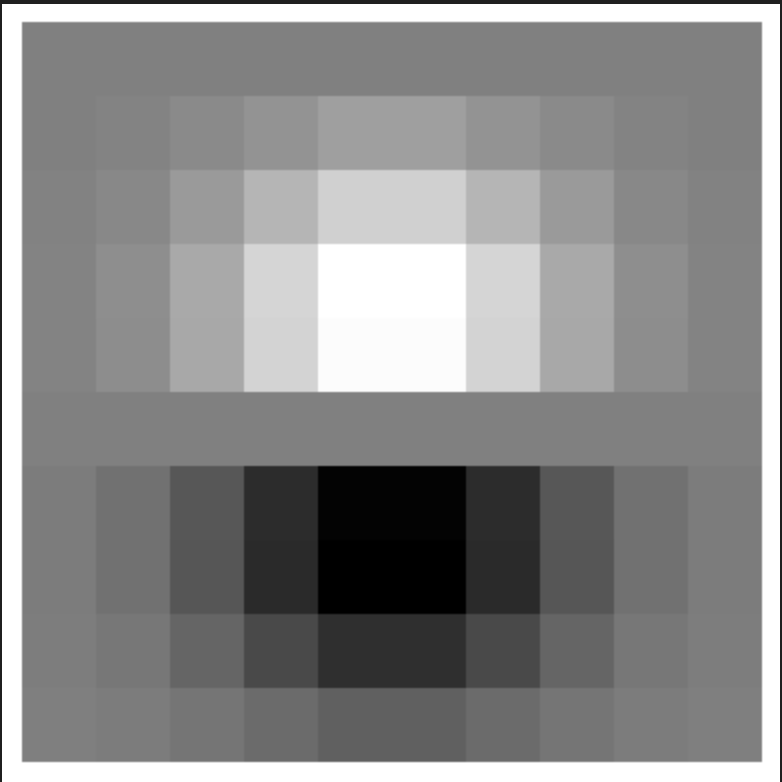

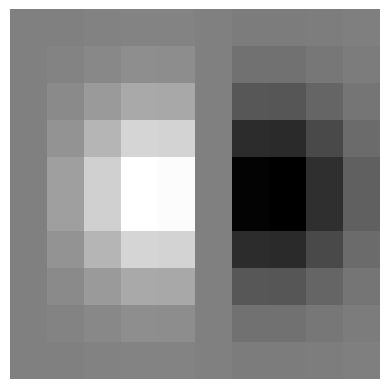

applying similar actions. The third method is to take the partial derivatives of the gaussian before
applying it to the original image, so that we only apply one convolution versus chaining multiple.

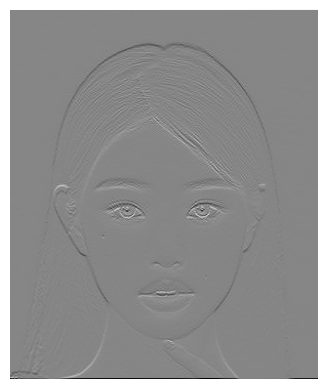

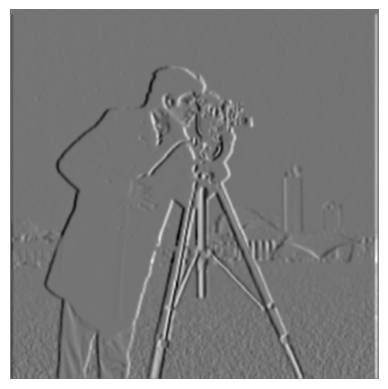

| Step | Finite Difference | Gaussian + Finite Difference | Derivative of Gaussian |
|---|---|---|---|
| Input |  |
 |
|

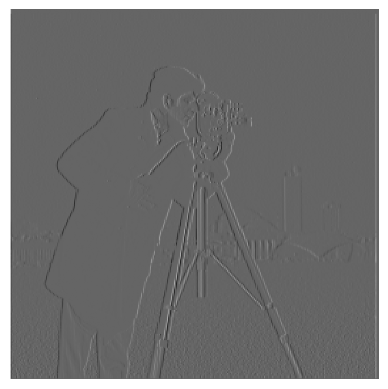

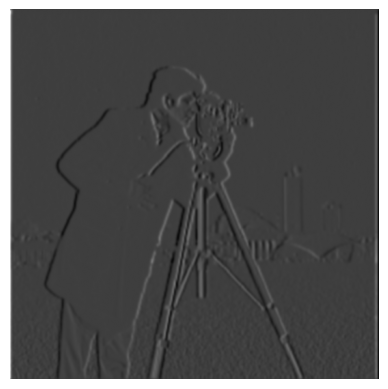

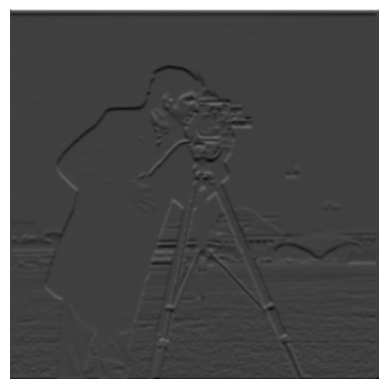

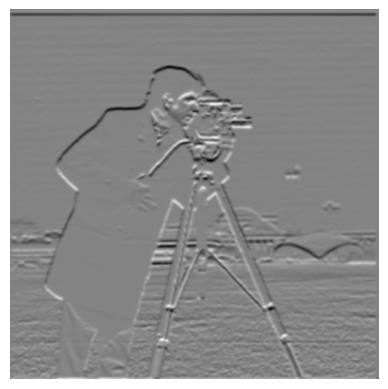

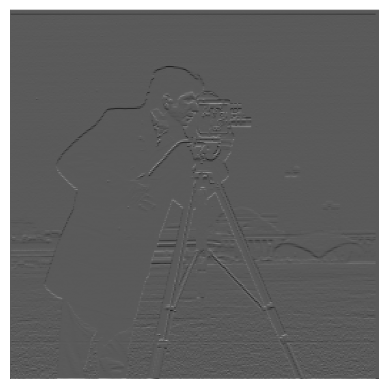

| Dx |  |
 |
 |
| Dy |  |
 |
 |

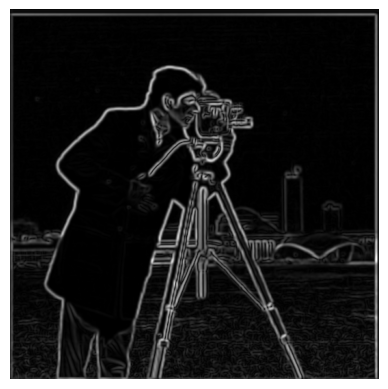

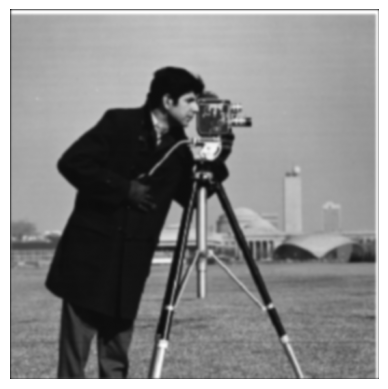

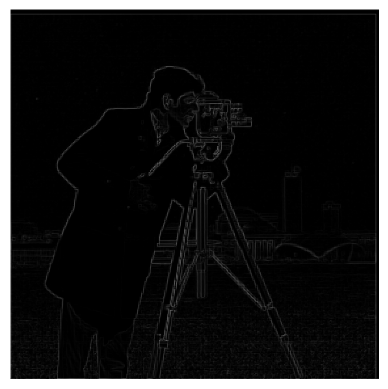

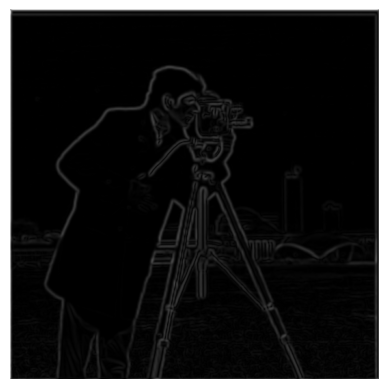

| Gradient Magnitude |  |
 |
 |

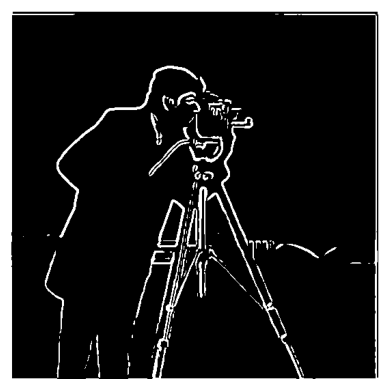

| Binarized Edges |  |
 |
 |

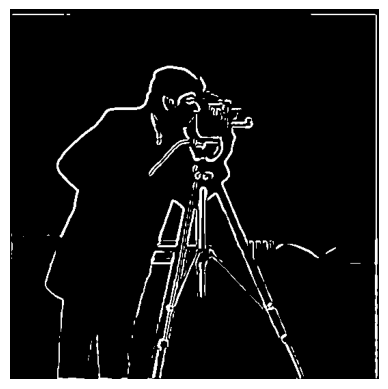

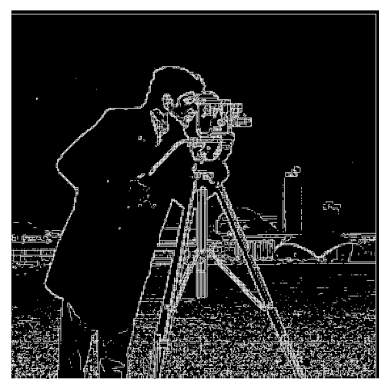

Comparing the outputs, we see the most difference in the binarized outputs. I chose a threshold of 0.06 for all 3 methods for proper comparison. This threshold gave a good balance in finding most edges in the gaussian smoothed outputs, but still removed some noise from the finite difference output. Still, we can see there is much more noise in the result where we did not use gaussian blurring. Lastly I wanted to comment that the results for the second and third method appear basically the same.
Image Sharpening

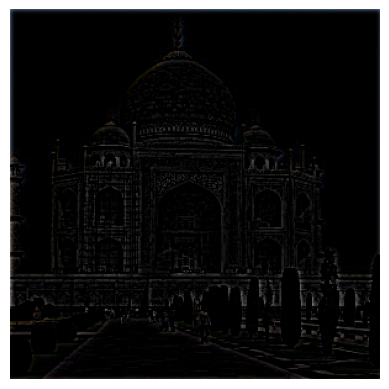

In this section we explore image sharpening by blurring an image, then subtracting these frequencies from the original image. This will give you the high frequencies of the image. Adding the high frequencies to the original image gives the sharpened image.

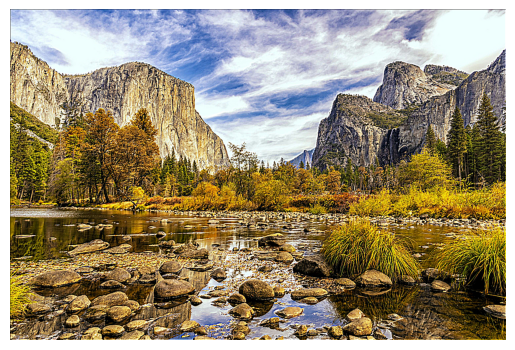

For this result, we see how the image changes depending on how much we "sharpen" the image (which is dependent on alpha). We can see that the more we sharpen the image, the darker edges get, almost looking unnatural if we sharpen too much.

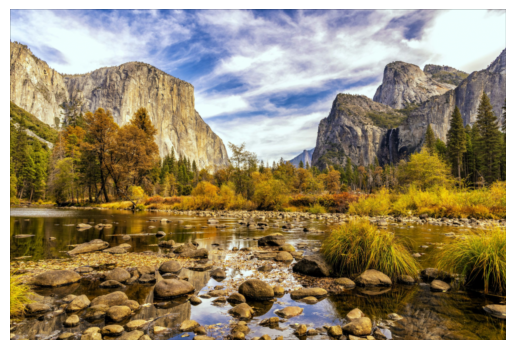

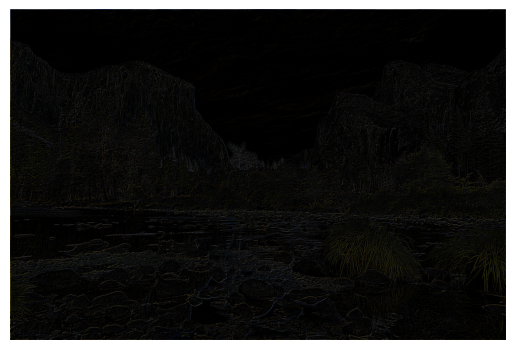

For this second result, we blur the image and then attempt to sharpen it again. So, approach is similar, but the high frequencies are taken from and applied to the blurred image rather than the original image. It's pretty clear that the details/high frequencies for this attempt are much fainter, and so when adding the high frequencies I had to use a higher alpha value (I used alpha=2 for Taj, but alpha=10 for Yosemite).
Hybrid Images

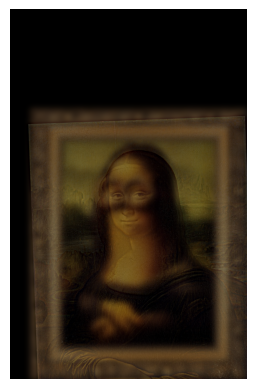

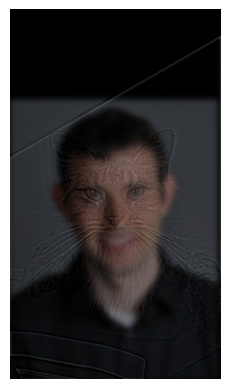

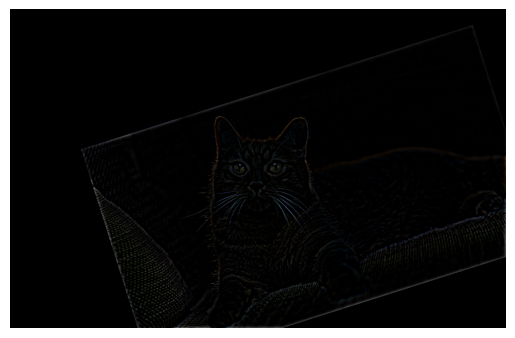

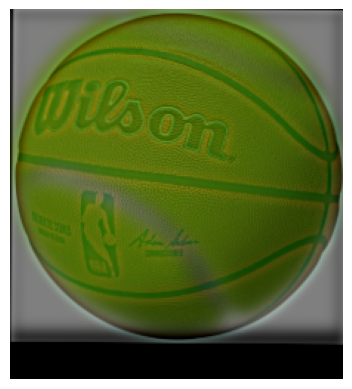

In this section we create hybrid images, which is taking the high frequencies of one image and averaging them with the low frequencies of another. The result is that the high frequency image is "emphasized" from up close whereas the low frequency image will be more prominent from far away. Admittedly, I think the high frequencies in my hybrid images look a bit weak. I would try using some amplification or normalizing to help with this. I also think keeping the images colored makes the results more mixed, so I would be interested in reproducing the images but in grayscale.

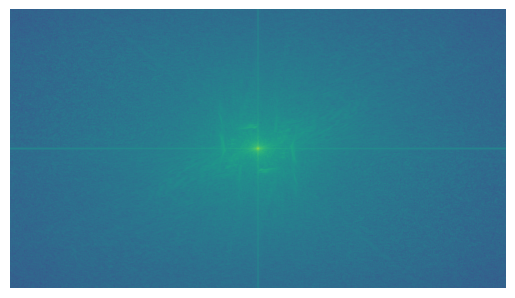

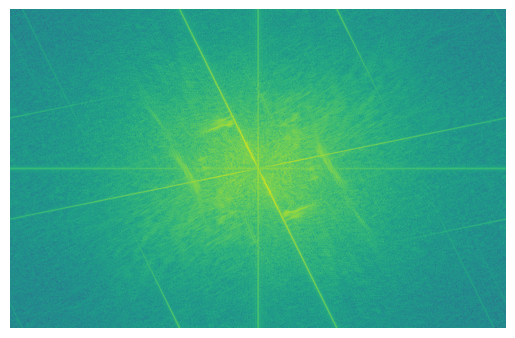

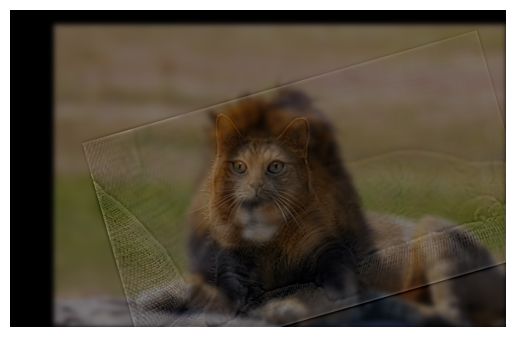

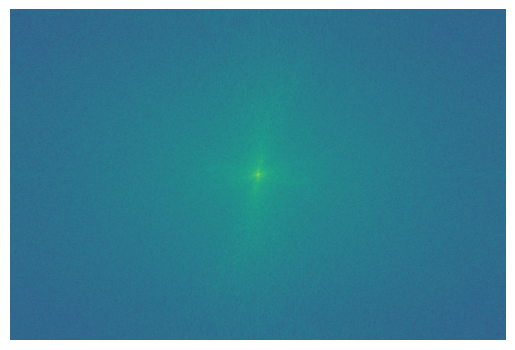

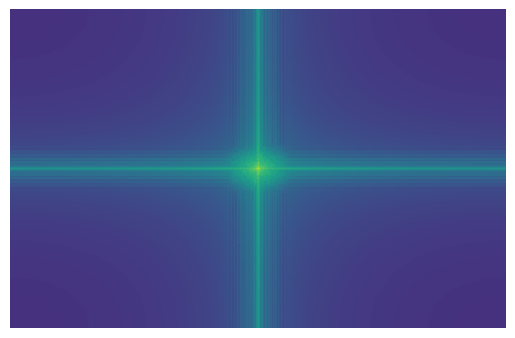

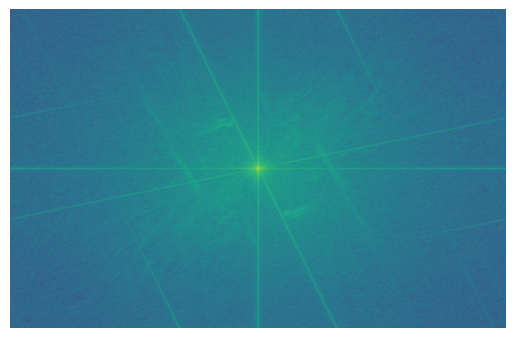

For this next pair of images, I illustrate the full process: alignment, fourier transforms, filtered results, and the final image. For cutoff frequency, I chose sigma_high=4 and sigma_low=6.
Gaussian and Laplacian Stacks

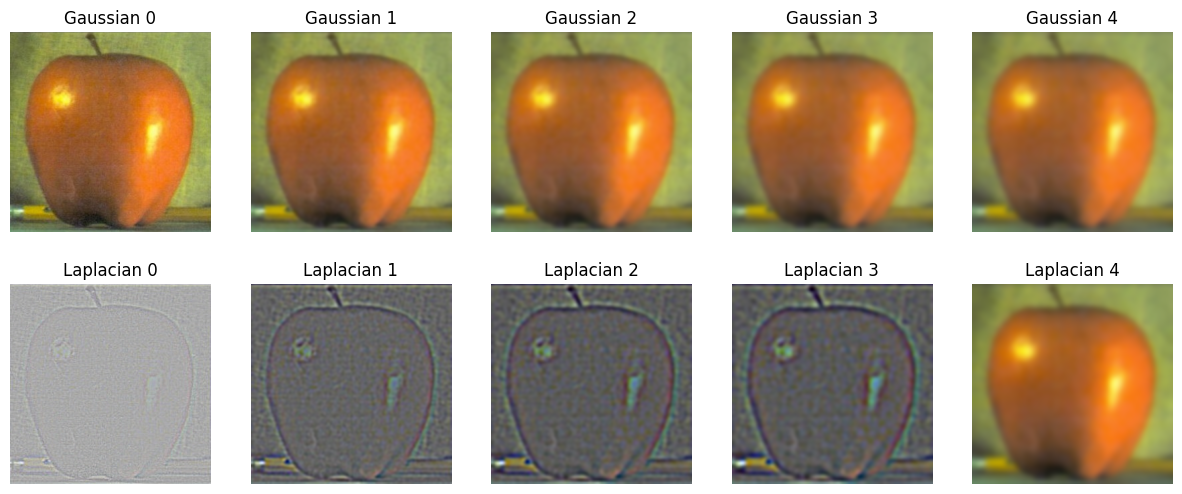

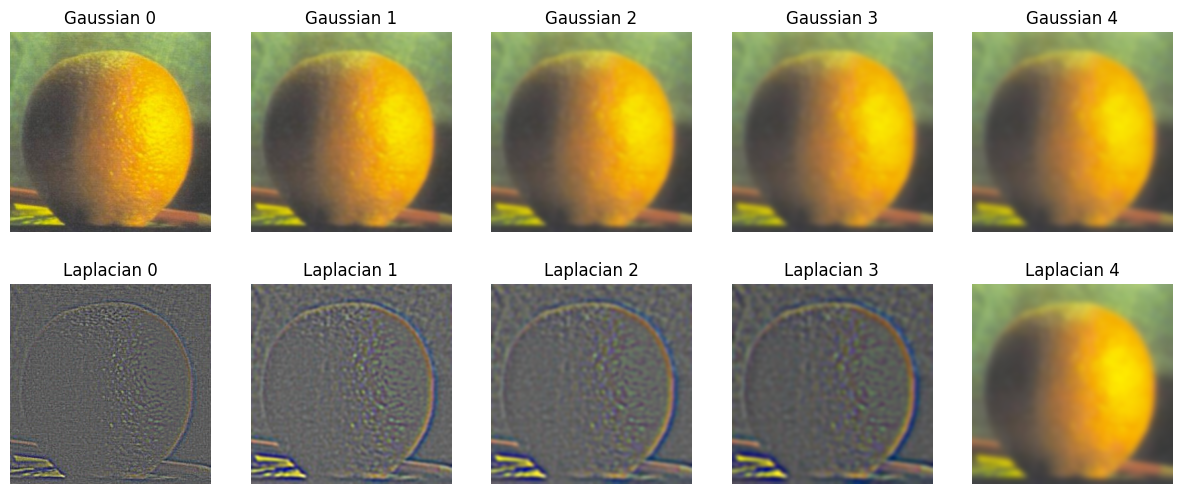

In this section we create gaussian and laplacian stacks of images. The process of creating a gaussian stack is to essentially repeatedly convolve an image witha gaussian kernel. Then we use the gaussian stack to construct the laplacian stack by taking the difference between each pair of consecutive layers in teh gaussian stack. The last layer of the laplacian stack is simply the last layer of the gaussian stack, so now each stack will have the same amount of layers.
Image Blending
We utilize creating gaussian and laplacian to blend 2 images together.
We create a laplacian stack for each image, as well a gaussian stack for our mask.
Stitching these stacks together using our smoothed mask gives a smooth transition between our images.
In these first examples we use a simple vertical mask.

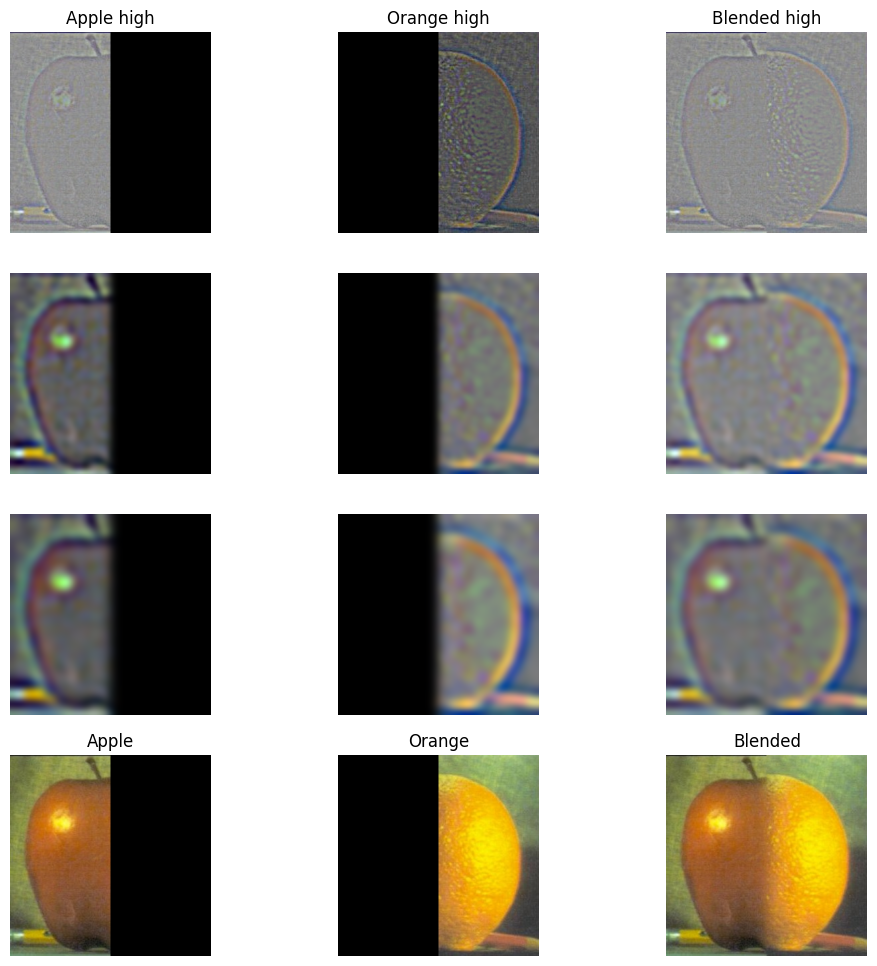

Orapple:
Green Blossom:

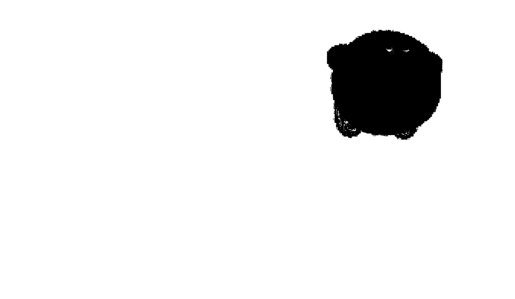

In these next examples we use irregular masks by taking advantage of the solid background of one image to binarize the image into a mask.

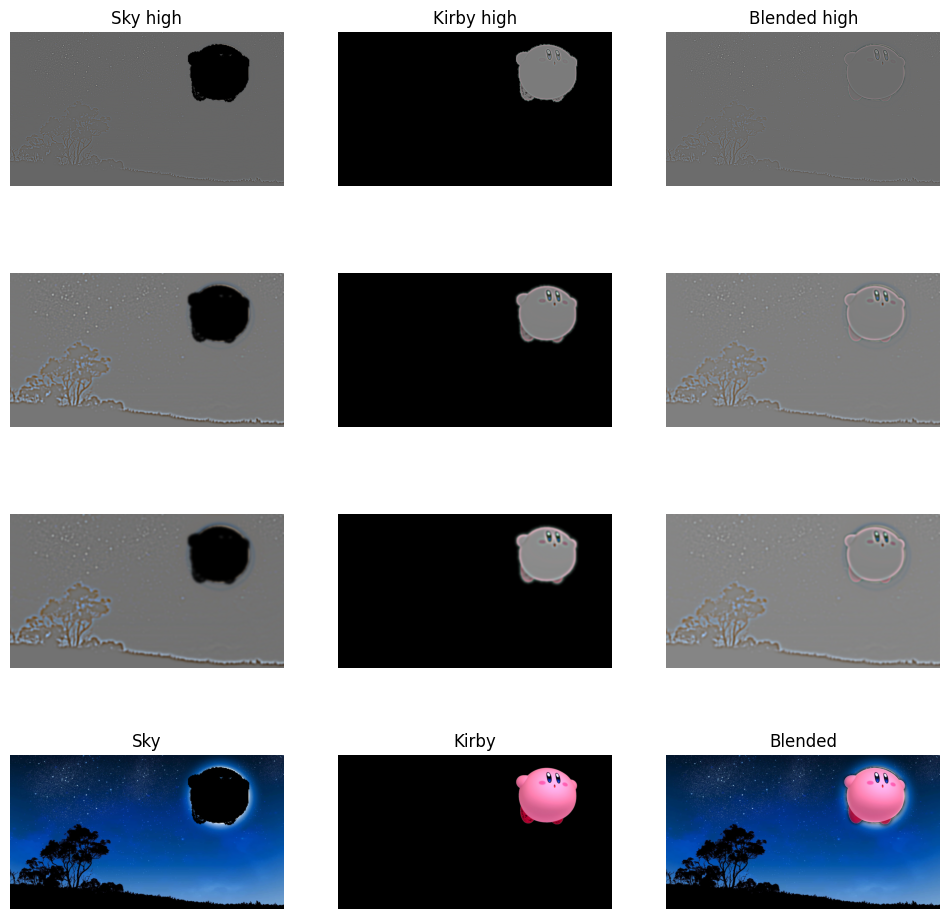

Kirby Moon:
Lebron dunking emoji:
